Description:

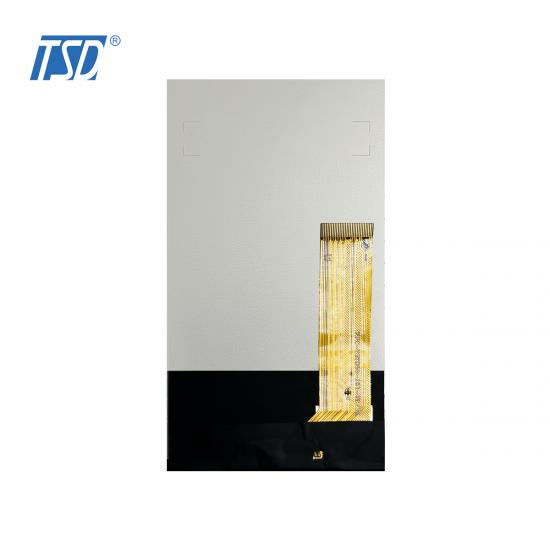

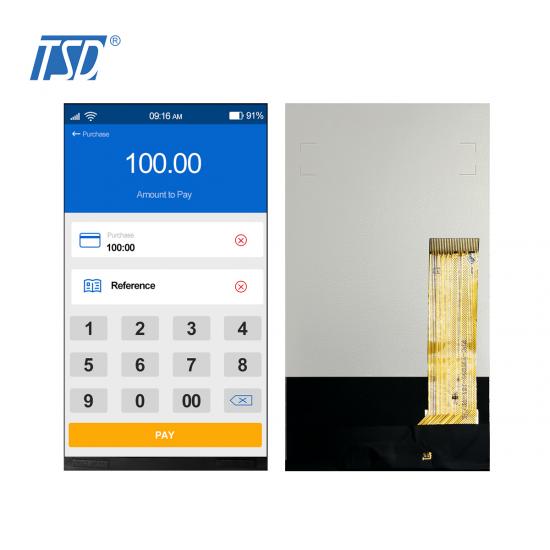

TST050FWHS-161 is 5 inch IPS TFT lcd display with MIPI interface. Resolution is 480x854, with Sitronix driver chip ST7701. This 5 inch TFT is transmissive type, IPS display with full viewing angle. Outline dimension of LCM is 64.92x117.7x2.35mm, LCD active area is 108x64.8mm. Surface luminance is 1000 cd/m2 high brightness, suitable for outdoor applications of two wheels. LED life time is 30,000 hours typically. Operating temperature is -30 to 70℃, storage temperature is -30 to 80℃.

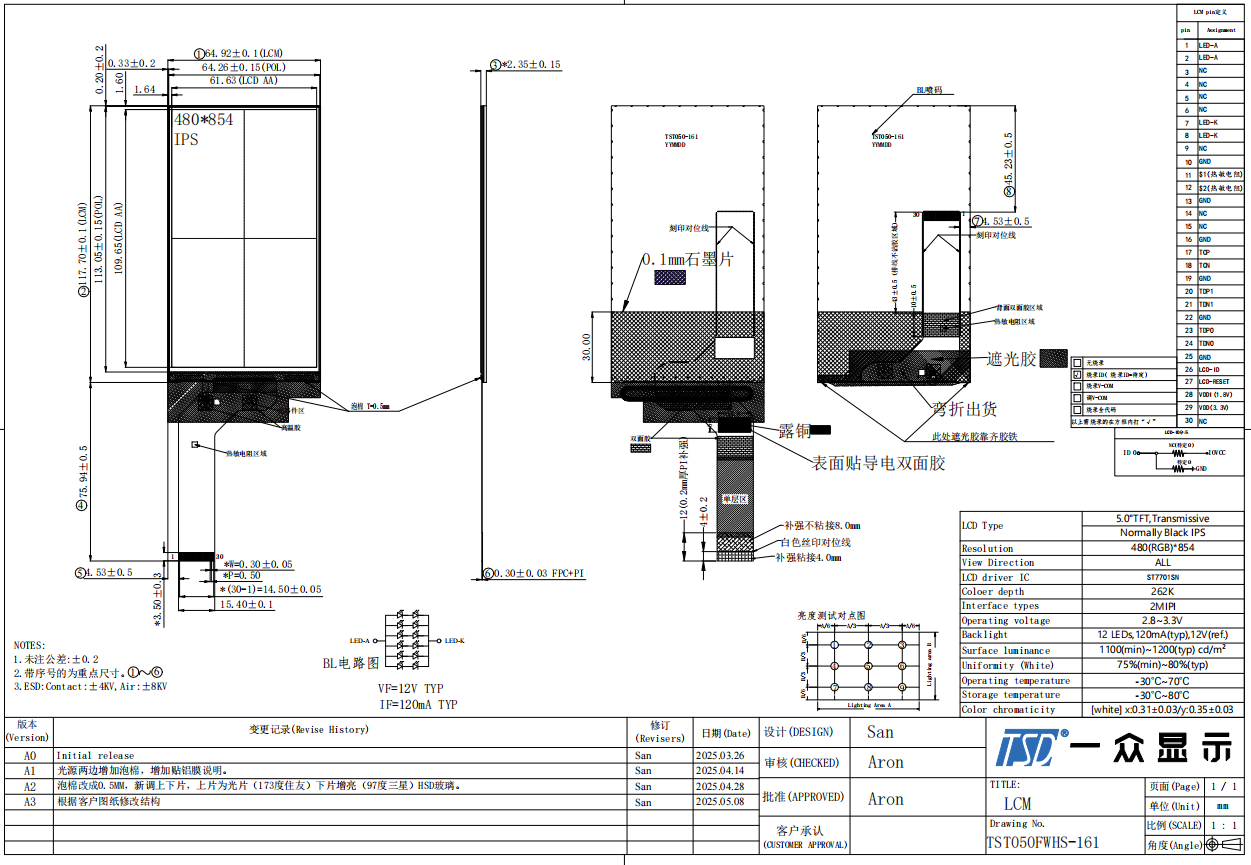

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST050FWHS-161 | |
| O utline Dimension(mm) | 64.92x117.7x2.35 | |
| Active Area(mm) | 61.63x109.96 | |
| Resolution(dots) | 480x854 | |
| Operating temperature(°C) | -30 ~ +70 °C | |
| Storage temperature(°C) | -30 ~ +80 °C | |
| Number of Pixel(pixels) | 480(H)xRGBx854(V) | |
| Touch panel | without | |
| Brightness | 1200 cd/m2 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 5 inch TFT | |
| Surface treatment | Antiglare | |
| View direction |
All
|
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RGB | |
| Module lifetime(Hours) | 30,000-40,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LED-A | LED Backlight (Anode) |
| 2 | LED-A | LED Backlight (Anode) |
| 3 | NC | No connection |
| 4 | NC | No connection |
| 5 | NC | No connection |
| 6 | NC | No connection |
| 7 | LED-K |
LED Backlight (Cathode
)
|
| 8 | LED-K | LED Backlight (Cathode ) |
| 9 | NC | No connection |
| 10 | GND | Ground |
| 11 | $1 | Thermistor 1 |
| 12 | $2 | Thermistor 2 |
| 13 | GND | Ground |
| 14 | NC | No connection |
| 15 | NC | No connection |
| 16 | GND | Ground |
| 17 | TCP | MIPI data cathode input pin |
| 18 | TCN | MIPI data aothod input pin |
| 19 | GND | Ground |
| 20 | TDP1 | MIPI data cathode input pin |
| 21 | TDN1 | MIPI data aothod input pin |
| 22 | GND | Ground |
| 23 | TDP0 | MIPI data cathode input pin |
| 24 | TDN0 | MIPI data aothod input pin |
| 25 | GND | Ground |
| 26 | LCD-ID | LCD-ID pin |
| 27 | LCD-RESET | Reset input signal |
| 28 | VDDI (1.8V) | Voltage input pin for logic I/O +1.8V |
| 29 | VDD (3.3V) | Power voltage input pin +3.3V |
| 30 | NC | No connection |
Applications:
Crystal-Clear Visibility: High-resolution LCD screen offers sharp, bright, and easy-to-read information under all lighting conditions—day or night.
Comprehensive Data Dashboard: Monitor your speed, battery level, remaining range, riding mode, and motor performance at a glance.
Smart Connectivity: Integrated Bluetooth support allows seamless pairing with your smartphone for calls, messages, navigation, and music control.
Enhanced Safety Alerts: Real-time notifications for low battery, system errors, and maintenance reminders keep you aware and ahead of potential issues.
Rider-Customizable Interface: Personalize your display layout and choose what data matters most to you.
